DIY 4-Leg Fan-Back Adirondack Chair Woodworking Plan
Build a sturdy outdoor Adirondack-style chair with four legs, wide armrests, a reclined slatted seat and a distinctive seven-slat fan back. This beginner-friendly digital PDF woodworking plan includes verified dimensions, cut lists, shopping lists, cutting layouts and step-by-step assembly instructions.
- Private PDF download after verified payment
- No physical item will be shipped
- Secure checkout powered by Stripe
About this product
Everything you need to get started.
Build a sturdy outdoor Adirondack-style chair with four legs, wide armrests, a reclined slatted seat and a distinctive seven-slat fan back. This beginner-friendly digital PDF woodworking plan includes verified dimensions, cut lists, shopping lists, cutting layouts and step-by-step assembly instructions.Read moreRead less
Build your own comfortable outdoor chair with the Rentery Home DIY 4-Leg Fan-Back Adirondack Chair Woodworking Plan.
This practical DIY design combines the relaxed comfort of an Adirondack-style chair with a sturdy four-leg construction, wide armrests, a reclined seat and a distinctive seven-slat fan-shaped back.
The finished chair measures approximately 33" wide × 34" deep × 39" high, with a 22" clear seat width and 21" seat slats.
Designed around standard U.S. dimensional lumber and common DIY tools, this plan is suitable for a beginner-friendly woodworking project while still providing the detailed measurements and construction information needed for a clean, durable result.
WHAT'S INCLUDED

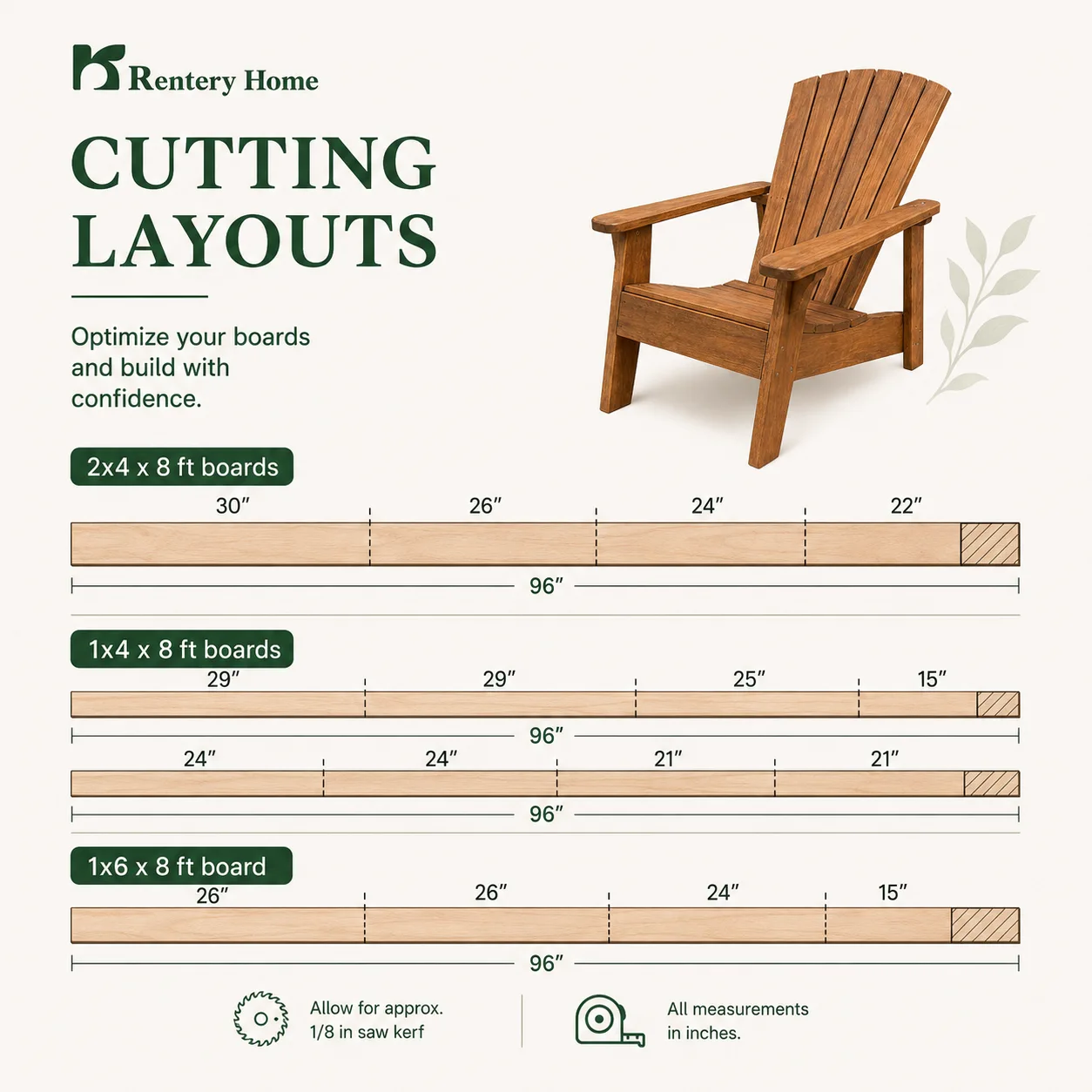

• Step-by-step building instructions • Detailed project dimensions • Front, side and geometry diagrams • Complete cut list with part IDs • Shopping list • Lumber cutting layouts • Saw kerf guidance • Hardware and fastener guide • Six-slat seat construction • Seven-slat fan-back layout • Armrest and brace installation • Outdoor finishing guidance • Final build checklist

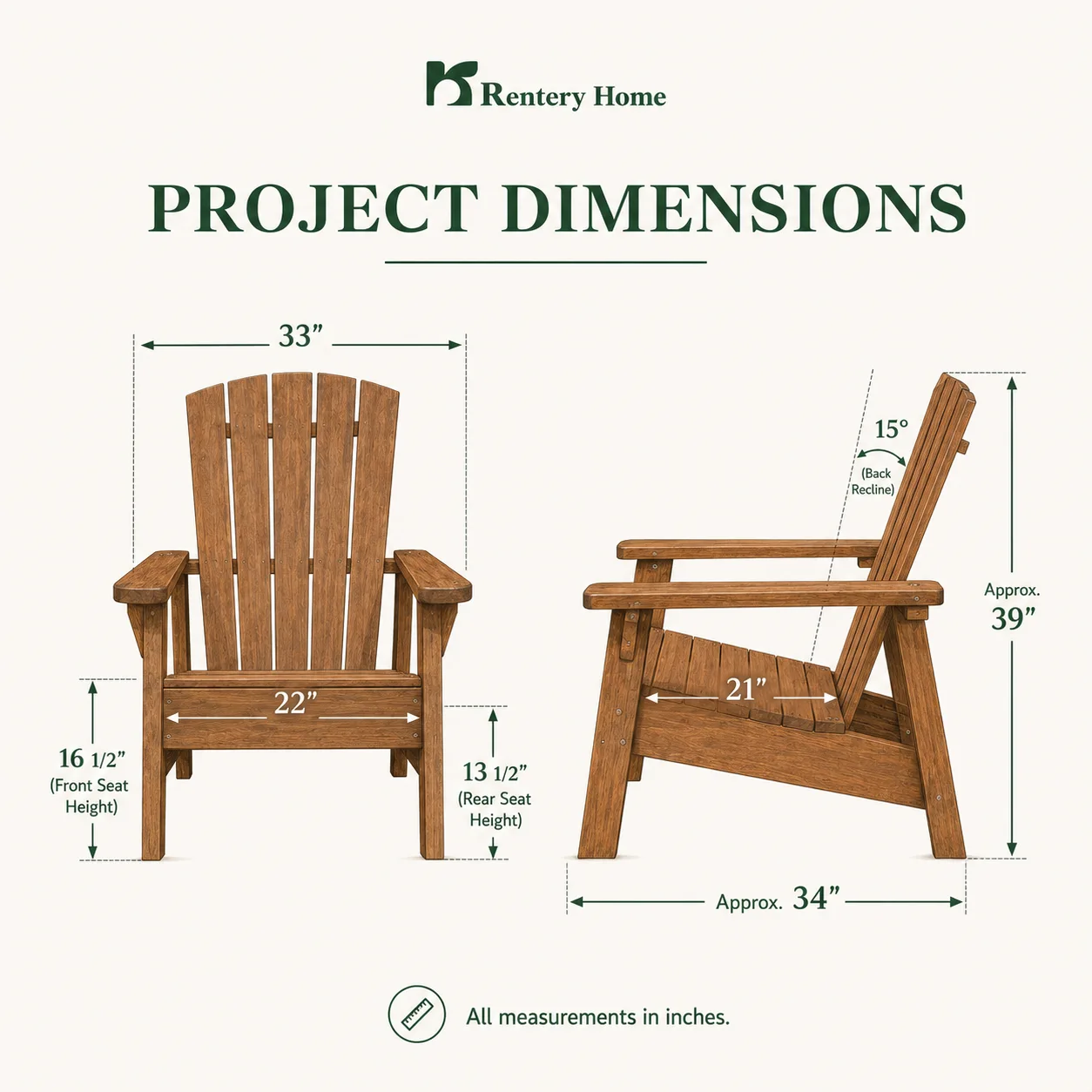

FINISHED PROJECT SIZE
• Overall width: 33" • Overall depth: approximately 34" • Overall height: approximately 39" • Clear seat width: 22" • Seat slat length: 21" • Front seat height: 16 1/2" • Rear seat height: 13 1/2" • Back recline: 15° • Armrest length: 29"
MAIN LUMBER
• 3 pieces — 2x4 × 8 ft • 5 pieces — 1x4 × 8 ft • 1 piece — 1x6 × 8 ft
Recommended lumber options include cedar, redwood, cypress or properly sealed exterior-rated pine.
TOOLS
Typical tools include a circular saw or miter saw, drill/driver, measuring tape, pencil, speed square, clamps and a sander or sanding block. A jigsaw is recommended for rounding the front corners of the armrests.
OUTDOOR USE
Use exterior-rated fasteners and an appropriate exterior stain, oil or paint system. Seal exposed end grain and inspect the chair periodically when it remains outdoors.
DIGITAL DOWNLOAD ONLY
This product is a PDF DIY woodworking plan only.
No physical chair, lumber, hardware, tools or other physical item will be shipped.
All customer-facing measurements in the plan are in inches.
This listing is for a downloadable digital file. No physical item or physical delivery is included.
